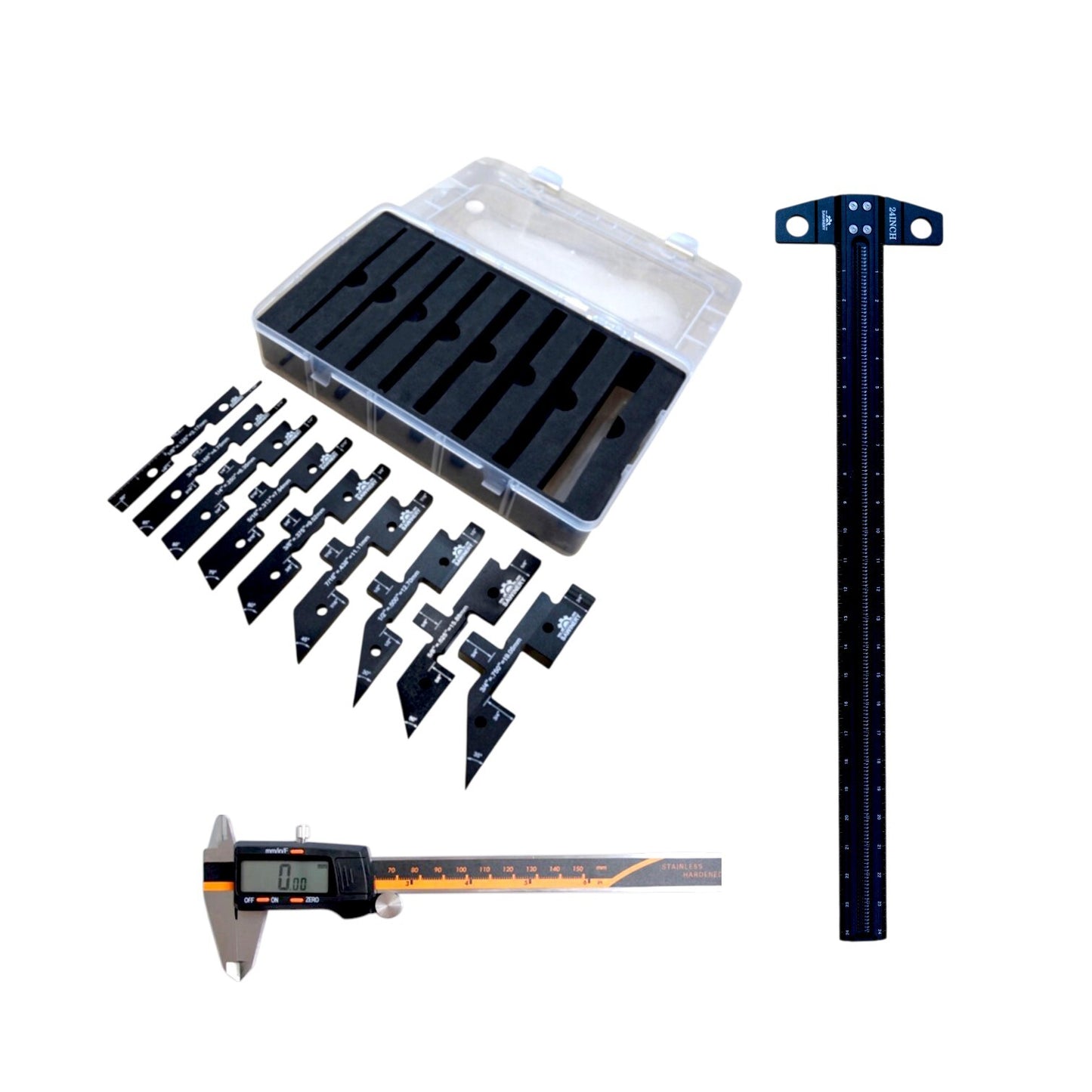

Calibrated Setup Bars

$44.90

~~$70.00~~ $44.90

Sale Sold out

Easily set up your table saw, router, and band saw with consistent precision and accuracy.

Highlights:

Multiple Gauging Points: Each bar has three points for basic dimension measurements and includes built-in angle gauges for additional setups.
Comprehensive Sizing: Bars range from 1/8" to 1/2" in 1/16" increments, with an extra 3/4" bar, covering a broad array of tool setups.
Built-in Angle Gauges: Included angles of 30°, 35°, 45°, 60°, 70°, 80°, 85°, and 90° add versatility to your setup tasks.
Precision Machining: Each bar is crafted to the highest precision standards, delivering accurate results for every task.
Material: Made from precision-machined, bead-blasted, anodized aluminum with etched dimensional markings on both sides for durability and easy reference.

Applications:

These setup bars are suitable for various measurement and setup tasks:

Table saw blade height
Table saw blade to fence
Router table bit height
Router bit height
Router table fence to edge of bit’s cutting path
Bandsaw blade to fence alignment

View full details

Uses & Features

Setting The Table Saw Blade Angle
Setting The Table Saw Blade Height
Setting The Table Saw Fence
Setting Router Table Bit Height
Setting Router Bit Depth
Setting Router Table Fence
Setting Band Saw Fence
Checking Tongue Cut
Checking Groove Width

Calibrated Setup Bars

Frequently Asked Questions

What tools can I set up with these bars?

They're perfect for dialing in table saw blade height, angle, and fence distance, router table fence alignment, router bit height and depth, and even bandsaw fence setups.

How do I use these bars to set the blade height on my table saw?

Simply place the desired bar over your blade, with the opening in the bar straddling it, and raise the blade until the tooth tips touch the bottom of the bar. If the saw's blade starts raising the bar, you've gone too high.

What are the angle gauges used for?

The built-in angles (30°, 35°, 45°, 60°, 70°, 80°, 85°, 90°) let you quickly check and adjust your blade tilt without needing a separate angle finder.

How do I use the angled edges for blade tilt?

Set the desired angle against the side of the blade, then tilt the blade until the surface of the blade is flush with the angled surface on the bar. This helps you quickly achieve common angles like 45° or 60° without pulling out a protractor.

Do I need to calibrate or recheck these bars over time?

No recalibration is needed—these are solid precision tools. Just keep them clean and free of debris for the most accurate results. Built up debris can change the overall dimensions. Store them in their box to prevent damage to the bars, which can also affect their dimensions.

Can I stack the bars to create custom measurements?

Yes! The flat sides and precise machining allow for safe stacking to achieve non-standard sizes, like combining 1/8" and 3/16" for a 5/16" measurement. Just be sure to keep any debris from getting between the bars.
